IECEX ATEX Certified Single Gas Detector with IP68 Protection

Name: IECEX ATEX Certified Single Gas Detector with IP68 Protection
Brand: SAFEGAS
Price: 1 USD

China IECEX ATEX Certified Single Gas Detector with IP68 Protection wholesale

Brand Name : SAFEGAS

Model Number : MiniMeta

Certification : IECEX/ATEX/EMC/CE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : ,T/T

Supply Ability : 100 pieces/day

Delivery Time : 3 work days

Packaging Details : Carton

Gas Detected : Specified according to application.

Measure range : Specified according to application.

Resolution : Specified according to application.

Principle : Electrochemical principle

Accuracy : ≤±2-5%FS (depending on the specific sensor)

Response time(T90) : 15-30s(depending on the specific sensor)

Unit : PPM, mg/m3, %VOL

Display : Gas name, concentration unit, measured value, battery power

Alarm mode : Sound, light, vibration alarm, high and low alarm values can be set by yourself

Alarm type : Low alarm, high alarm, STEL, TWA, low battery optional calibration due and bump test due

Power supply mode : 3.6V dry battery (non-rechargeable

Explosion-proof grade : ExiaIICT4Ga

Protection class : IP68

Executive standards : GB 12358-2006, GB 3836.1-2010,GB 3836.4-2010, JJF1421-2013, JJF1363-2019, JJF1364-2012, JJG 365-2008, IEC 60079-0-2017, IEC 60079-11-2

Working temperature : -20℃～55℃

Working humidity： : 0-95%RH (non-condensing)

Working air pressure： : 86~106kpa

Dimensions： : 90*60*33mm (length*width*thickness)

Weight： : 125g (With Clip)

Contact Now

IECEX ATEX Certified Single Gas Detector with IP68 Protection

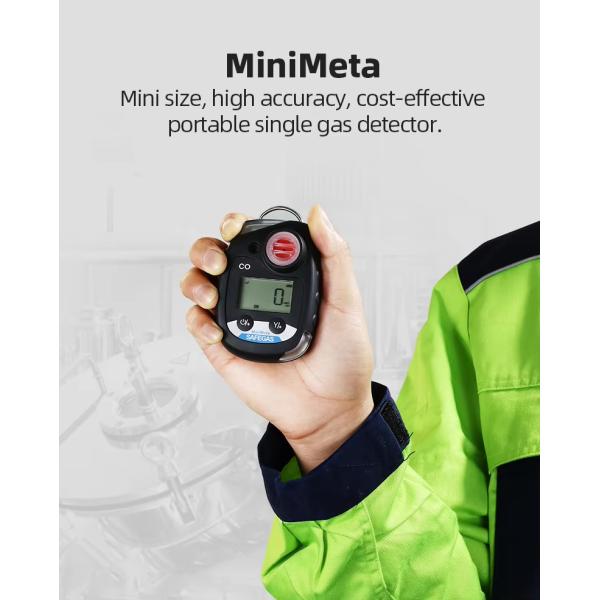

Product Overview: MiniMeta is an IECEX/ATEX/EMC certified single-gas detector. It can detect hundreds of user-selected toxic gases, user friendly and easy for operation. The battery and sensor is replaceable to provide user a long-term protection. It is designed to offer a low long-term ownership cost of a gas monitoring system.

Product Advantages:

1. IP68 water- and dust-resistant case

2. Low power consumption with 2 years standby time, no need battery charge and calibration

3. With Single /multi unit docking station to perform daily bump test and calibration (Optional)

4. With event and data logging function (optional)

5. With self-test function, which can improve safety by automatic self-test

6. Small size, light weight and with back clip for easily carry

7. 95db@30cm buzzer alarm, 2 high-bright red LED light alarm and vibration alarm

8. Real time value, TWA, STEL, MAX, MIN multiple data display

Technical Parameters:

Gas Detected: Specified according to application.

Detection Principle: Diffusion

Measure range: Specified according to application.

Resolution: Specified according to application.

Accuracy: ≤±2-5%FS (depending on the specific sensor)

Response time(T90): 15-30s (depending on the specific sensor)

(Detection) Principle: Electrochemical principle

Unit: PPM, mg/m³, %VOL

Display: Gas name, concentration unit, measured value, battery power

Alarm mode: Sound, light, vibration alarm, high and low alarm values can be set by yourself

Alarm type: Low alarm, high alarm, STEL, TWA, low battery optional calibration due and bump test due

Power supply mode: 3.6V dry battery (non-rechargeable)

Explosion-proof grade: ExiaIICT4Ga

Protection class: IP68

Executive standards: GB 12358-2006, GB 3836.1-2010, GB 3836.4-2010, JJF1421-2013, JJF1363-2019, JJF1364-2012, JJG 365-2008, IEC 60079-0-2017, IEC 60079-11-2

Working temperature: -20℃~55℃

Working humidity: 0-95%RH (non-condensing)

Working air pressure: 86~106kpa

Dimensions: 90×60×33mm (length×width×thickness)

Weight: 125g (With Clip)

Product video

Product Description

IECEX ATEX Certified Single Gas Detector with IP68 Protection

Package

Company Information

IECEX ATEX Certified Single Gas Detector with IP68 Protection

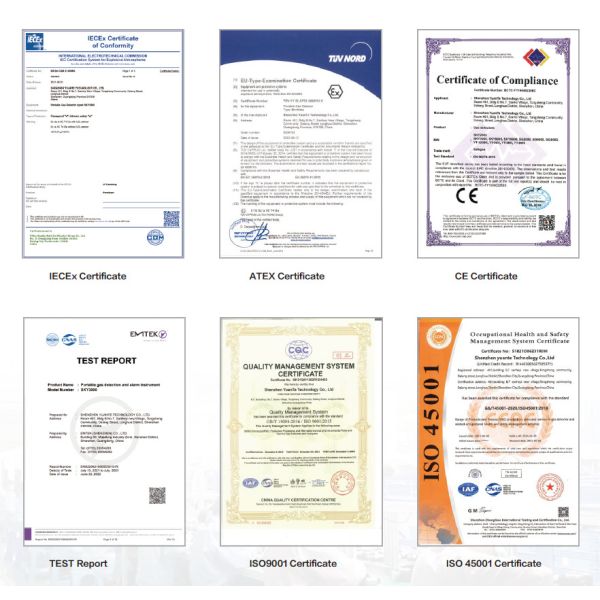

Certifications
